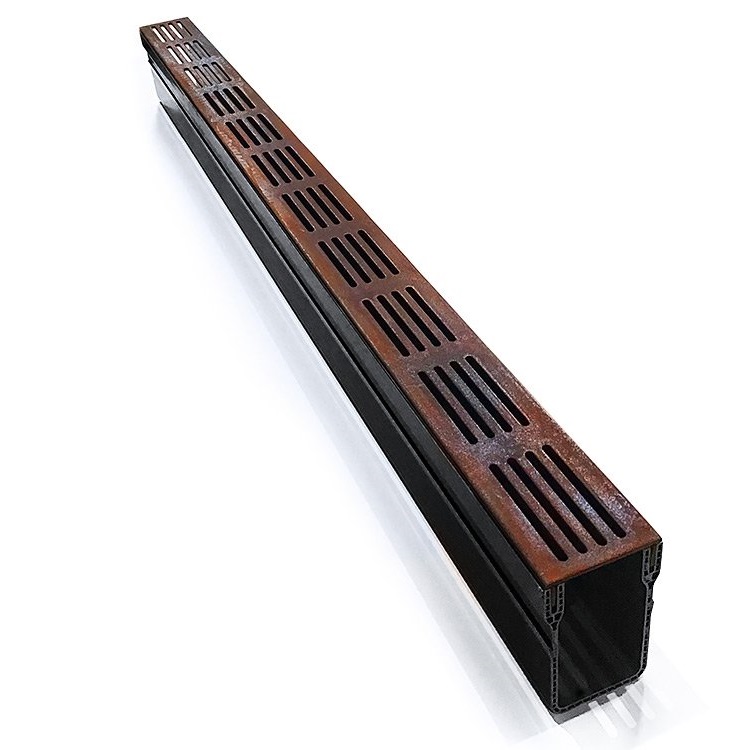

Threshold Drain x 1m Corten Steel Grate

Threshold Drain x 1m Corten Steel Grate
Zoom  Zoom
Our Price:  £29.46(Exc. 20% VAT)(£35.35 Inc. VAT)Earn 29 Loyalty Points
–+

Model:  TD410

Corten steel has in recent years become more and more popular in many architectural outdoor projects due to the natural oxidizing fi nish, which creates a very special and unique look and minimizes the need for maintenance.

Corten is a special steel alloy, developed to avoid the need for painting and maintenance. When corten steel is exposed to weather and wind, in time the surface acquires a stable and rust-like patina, which increases the steel’s resistance to atmospheric corrosion compared to other types of steel.

Corten steel resists corrosive eff ects of rain, snow, ice, fog and other meteorological conditions by forming a coating of dark brown oxidation over the metal, which prevents deeper penetration and removes the need for paint and rust prevention maintenance. In short, the steel is allowed to rust on the surface, thereby forming a protective coating that reduces the rate of future corrosion.

Dimensions:

  • External Width (Top)- 67mm
  • Internal Width (Top)- 45mm
  • External Width (Bottom)- 60mm
  • Internal Width (Bottom)- 52mm
  • Internal Depth- 97mm
  • External Depth- 104mm
  • Length-1000mm

Advantages and Features:

  • Grate is removable for cleaning
  • A15 rated- Popular for use on a patio or top end of driveway (providing a car will not drive over it).
  • This channel is easy to put together with the use of connectors to help keep the unit stable during installation. We recommend you purchase 1 connector per length of channel and use a connector on each of the three ends of a tee and both ends of the 90deg corner unit.
  • It is advisable to leave the protective film in place while installing or remove the grating completely.

Compatible products:

  • TD402 - Channel Coupling
  • TD403 - Bottom outlet to 80mm
  • TD404 - Channel End Cap
  • TD405 - Inline Outlet to 50mm
  • TD411 - Threshold Corner Unit Corten Steel Grate
  • TD412 - Threshold Drain Tee Corten Steel Grate
  • PTE804 Can be used to convert the bottom outlet to 110mm

A15 Refers to the maximum weight load that the channel can withstand. This channel is commonly used in pedestrian areas. For example in gardens or pedestrian footfall areas where there is limited vehicle contact. This channel can hold up to 1.5 tonnes

*Please note: These are not ACO and are not compatible with ACO products*
